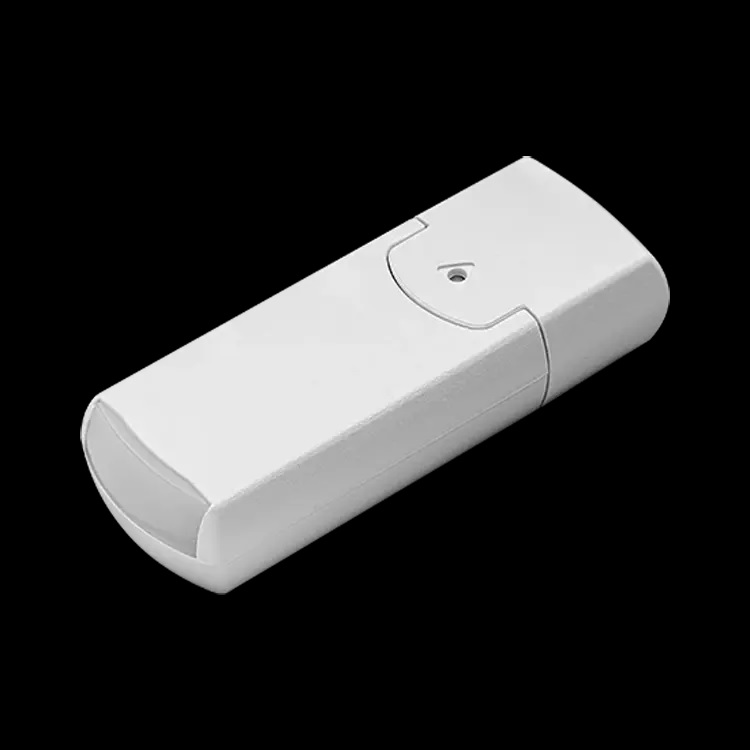

UTrust Token Flex
₹1,600.00
Additional information
| Supported Standards | ISO/IEC 7816 Part 1 to 4 |
|---|---|
| Supported Tag ICs | All major ISO/IEC 7816 compliant Smart Card IC support |
| Smart Card Protocols | T=0, T=1 |
| Smart Card Interface Speed | Up to 600 kbps (depending on card), TA1=97 |
| Smart Card Clock Frequency | ISO/IEC 7816 compliant; Operates up to 4.8 MHz |
| Supported Smart Card Types | 5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C |
| Power to Smart Card | 60mA in Class A; 55mA in Class B; 35mA in Class C |
| Smart Card Detection | Automatic power on/off; Short circuit protection |
| Card Size | ID-000 (SIM size) |
| Contact Type | Sliding Contact Socket (6 pin) |
| Power & Communication | Bus-powered USB |
| Power Consumption & Delivery | <20 mA with standard smart; <500 μA in Standby Mode |
| Dimensions | 50 x 18 x 9.5 mm |
| Weight | 6 g |
| Operating Temperature Range | 0° to 50° C (32° to 122° F) |
| Storage Temperature Range | -20° to 60°C (-4° to 140° F) |
| Operating Humidity Range | Up to 95% RH non-condensing |
| Connector | USB Type A or Type C Connector |
| Status Indicator | Green LED |
| Firmware | CCID |
| Firmware In-Field Upgradeable | No |
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
UTrust Token Flex
₹1,600.00
Technical Specifications
Product Catalogue
Product Specifications
| Supported Standards | ISO/IEC 7816 Part 1 to 4 |
|---|---|
| Supported Tag ICs | All major ISO/IEC 7816 compliant Smart Card IC support |
| Smart Card Protocols | T=0, T=1 |
| Smart Card Interface Speed | Up to 600 kbps (depending on card), TA1=97 |
| Smart Card Clock Frequency | ISO/IEC 7816 compliant; Operates up to 4.8 MHz |
| Supported Smart Card Types | 5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C |
| Power to Smart Card | 60mA in Class A; 55mA in Class B; 35mA in Class C |
| Smart Card Detection | Automatic power on/off; Short circuit protection |
| Card Size | ID-000 (SIM size) |
| Contact Type | Sliding Contact Socket (6 pin) |
| Power & Communication | Bus-powered USB |
| Power Consumption & Delivery | <20 mA with standard smart; <500 μA in Standby Mode |
| Dimensions | 50 x 18 x 9.5 mm |
| Weight | 6 g |
| Operating Temperature Range | 0° to 50° C (32° to 122° F) |
| Storage Temperature Range | -20° to 60°C (-4° to 140° F) |
| Operating Humidity Range | Up to 95% RH non-condensing |
| Connector | USB Type A or Type C Connector |
| Status Indicator | Green LED |
| Firmware | CCID |
| Firmware In-Field Upgradeable | No |
Product Information
