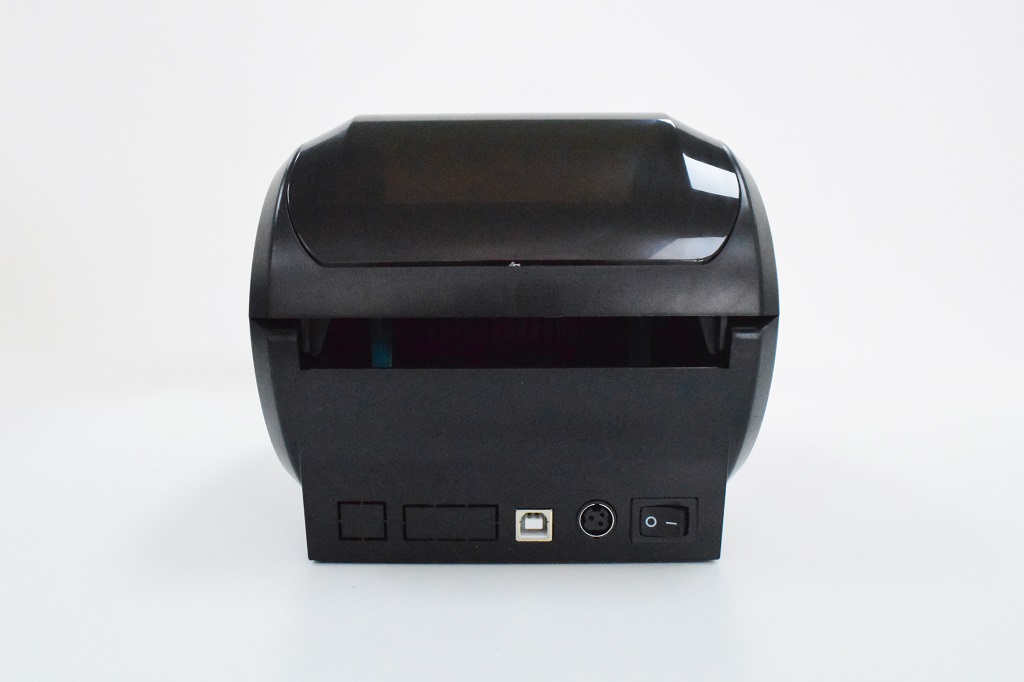

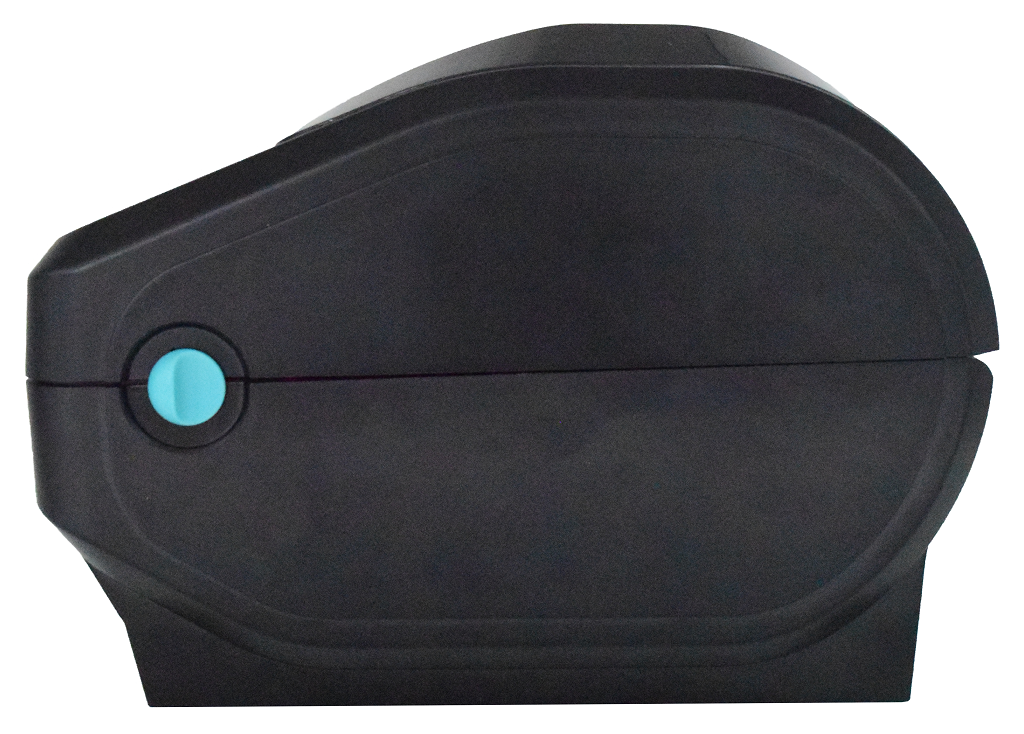

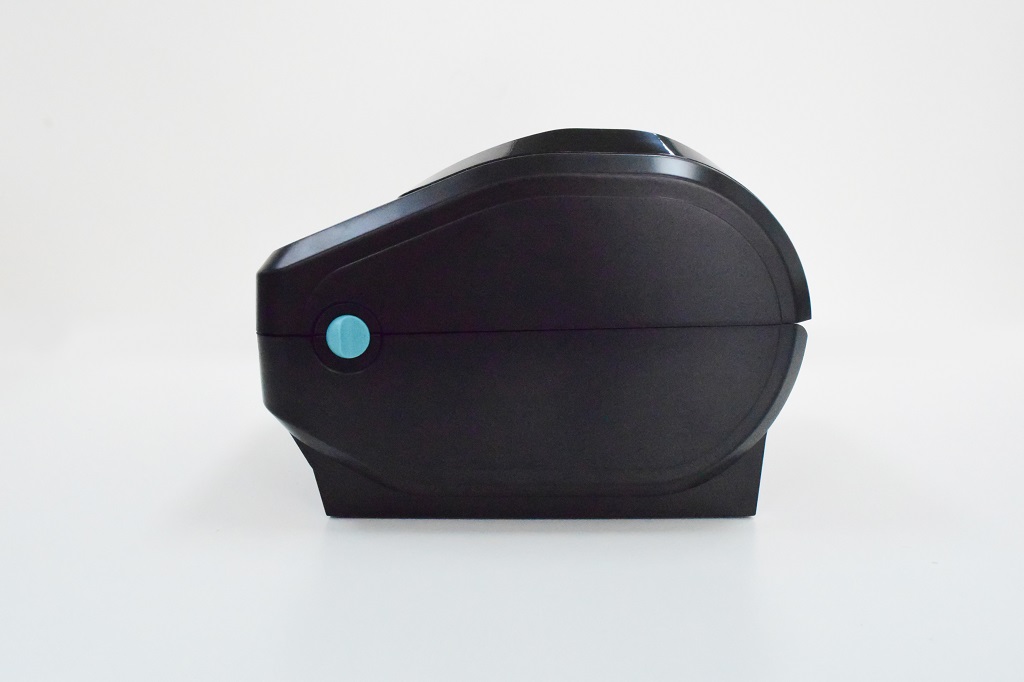

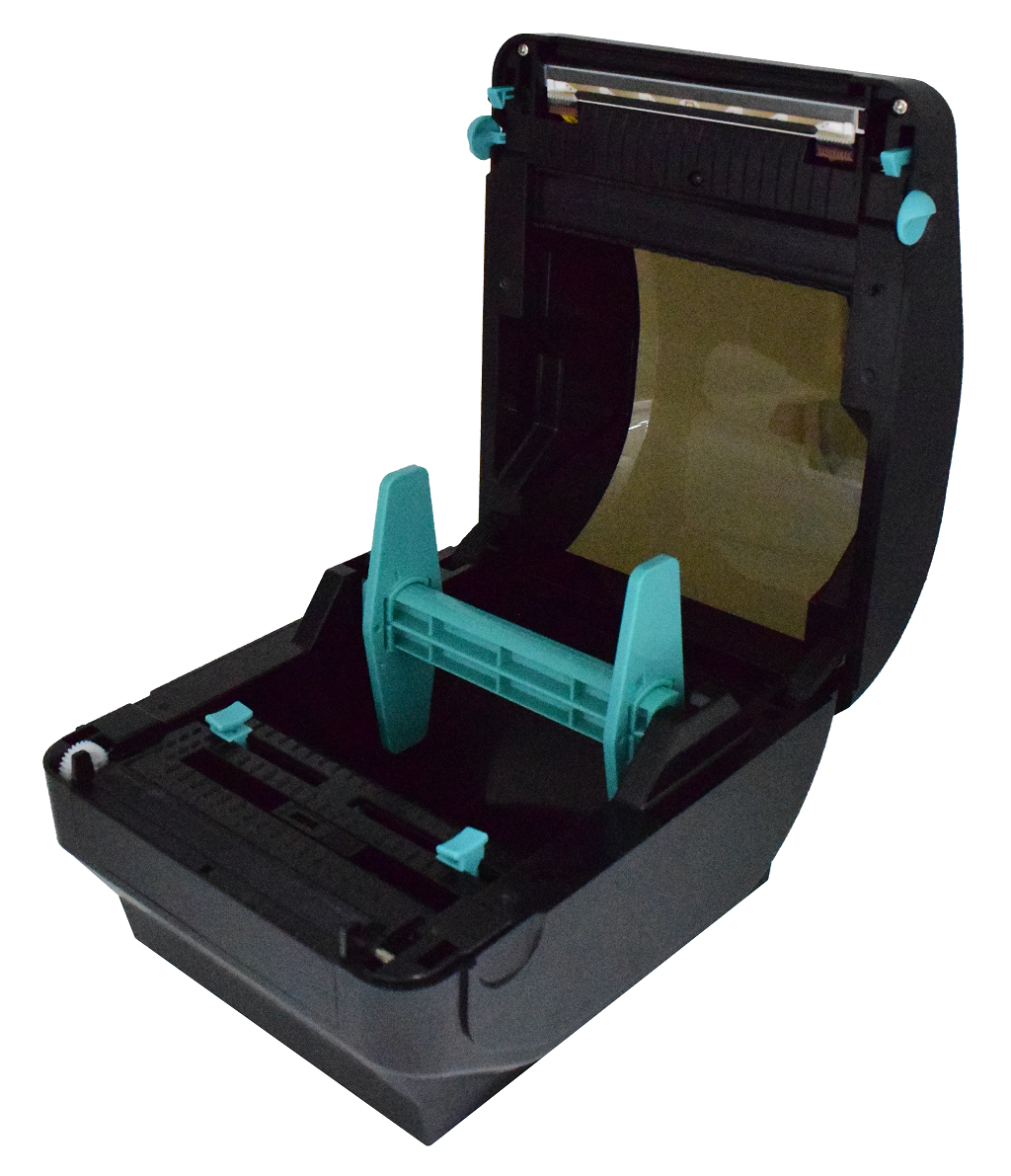

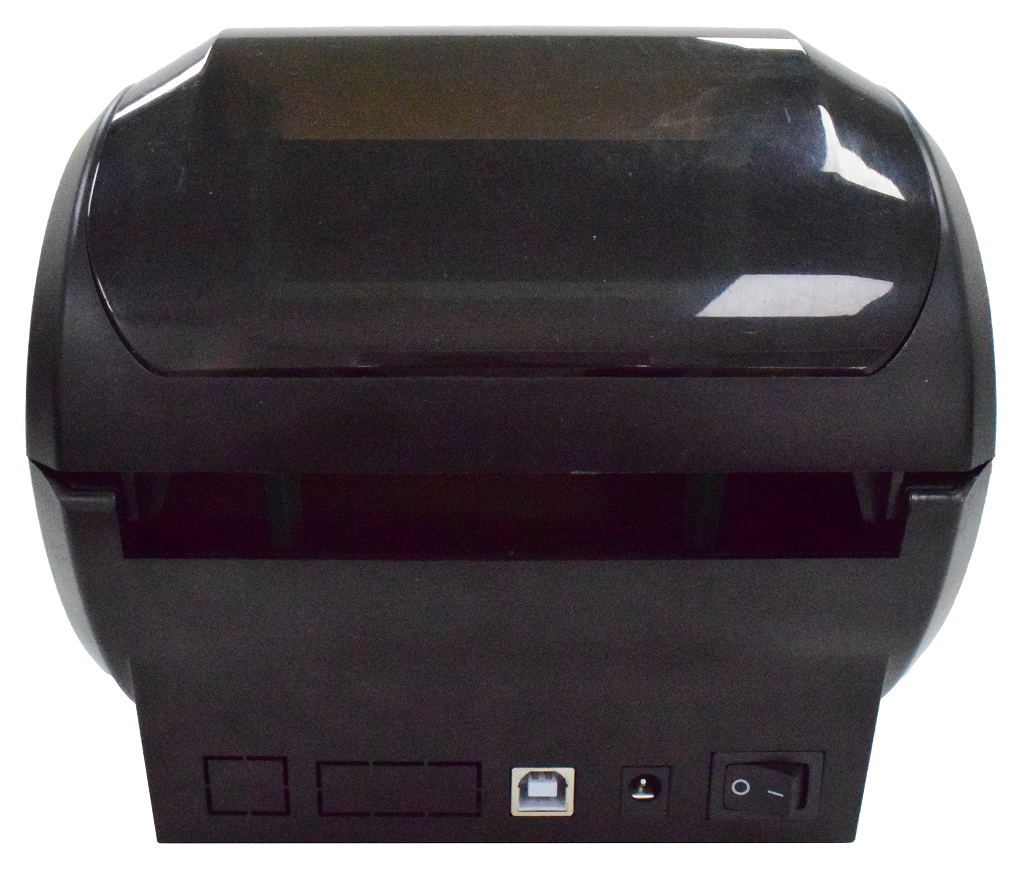

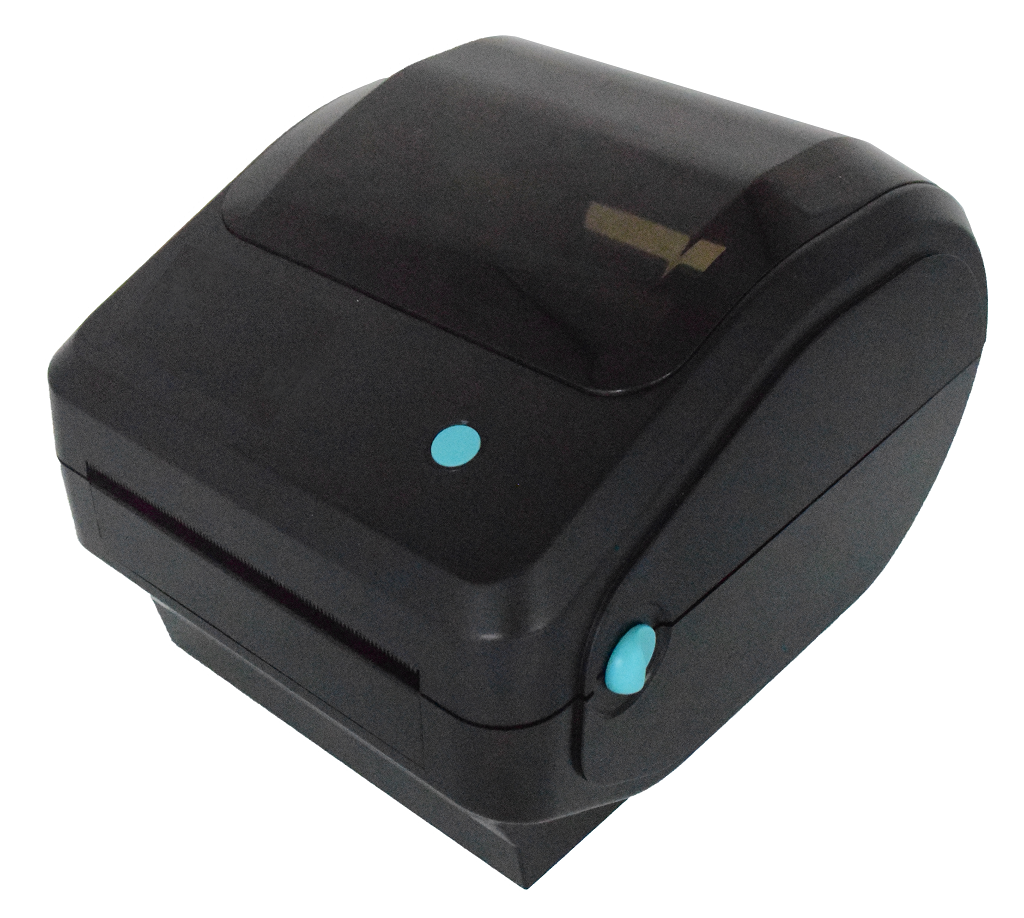

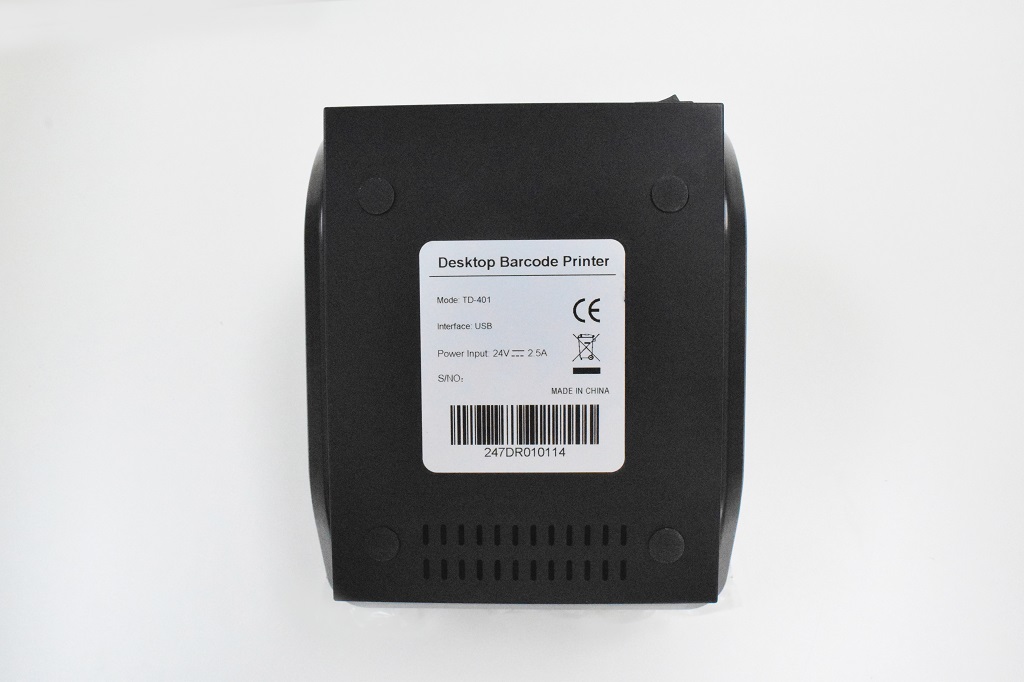

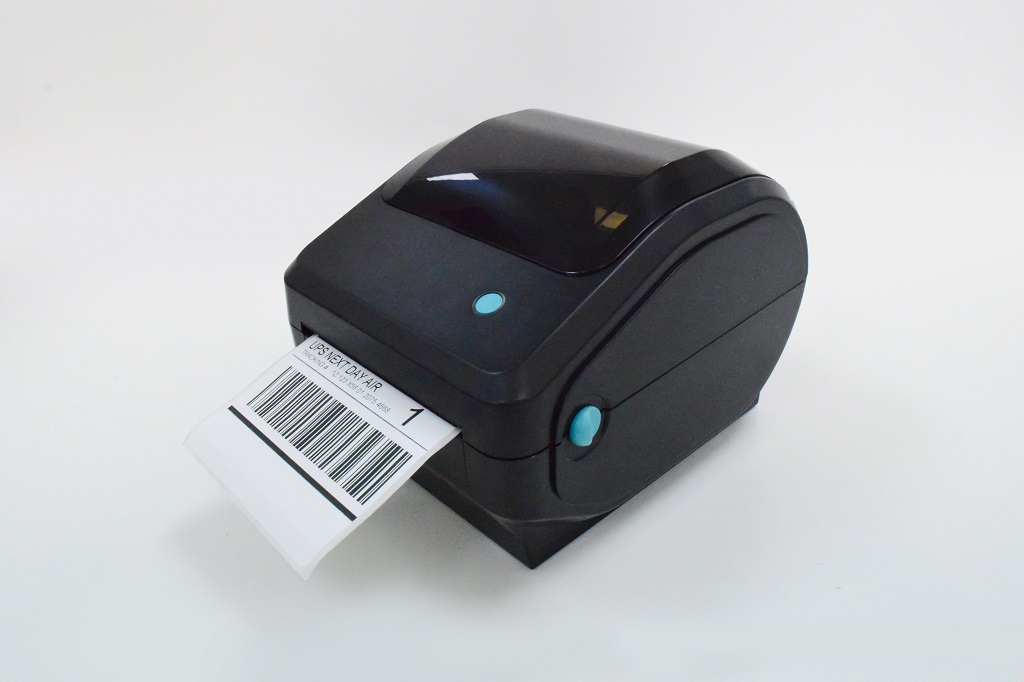

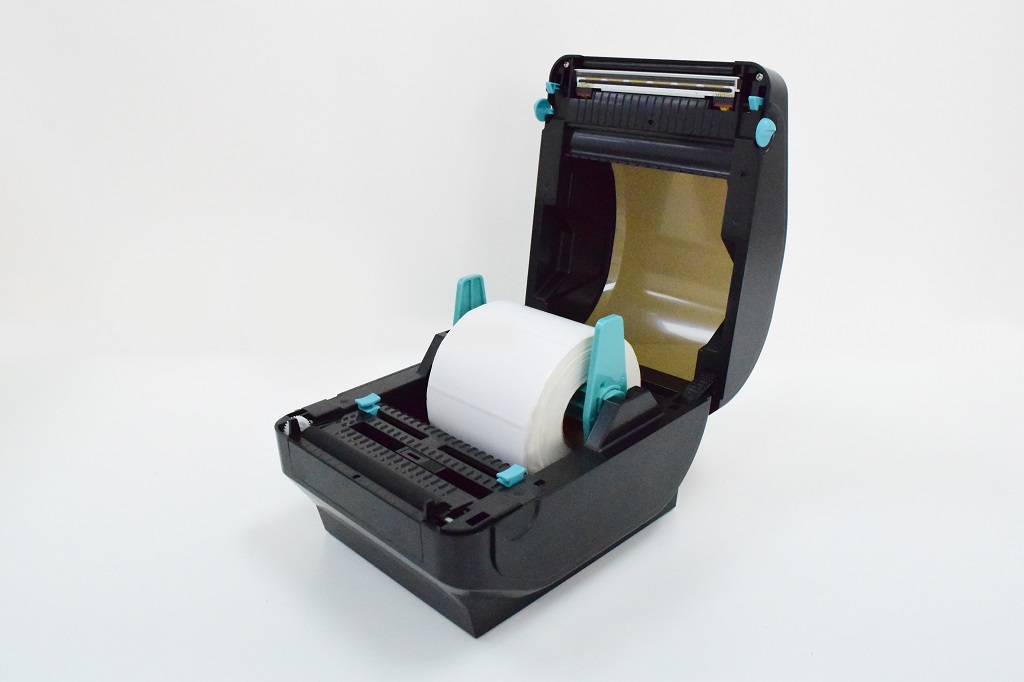

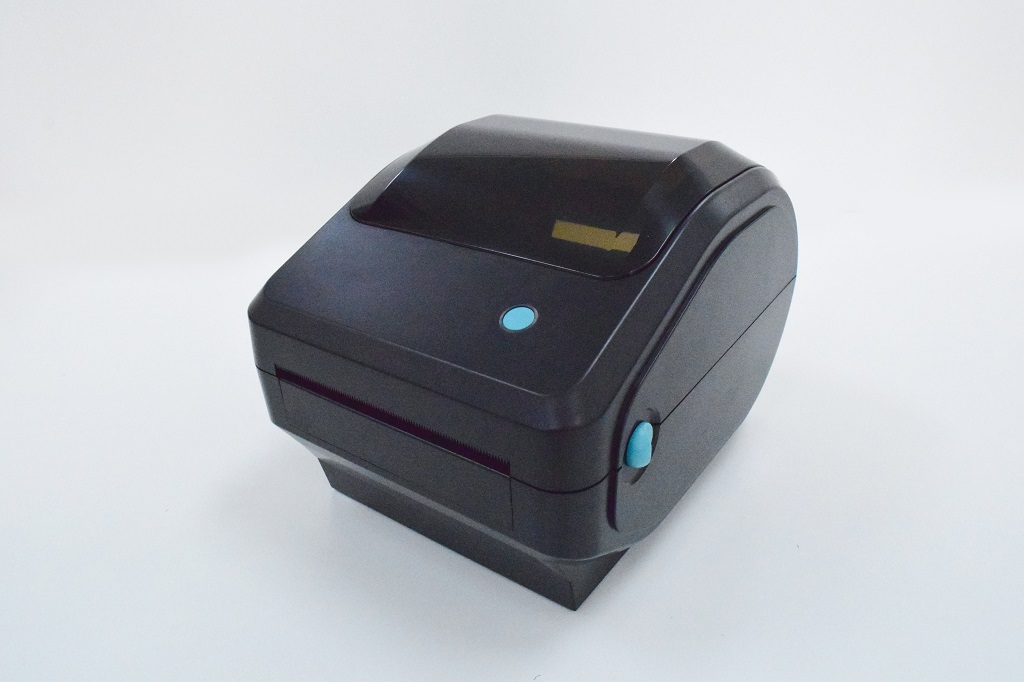

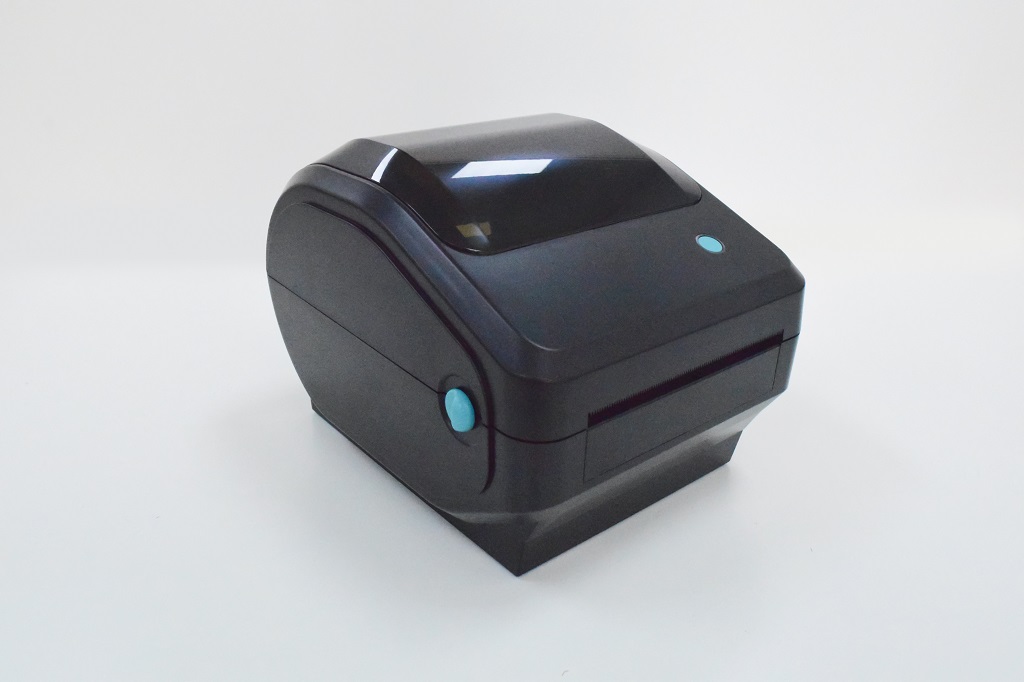

TD401 4-inch Desktop Thermal Label Printer – USB
₹7,500.00
Additional information
| Model | Desktop Barcode Printer TD-401 |
|---|---|
| Print head dpi | 203CPI |
| Printing Method | Thermal |
| Interface | USB |
| Emulation | TSPL, ZPL, CPCL, DPL, EPL |
| Sensor | Gap Sensor/ Open cover sensor/ Black Label Sensor |
| Print Speed | 152mm/s (max) |
| Printing width | 108mm (max) |
| Printing Length | 1778mm (max) |
| SDRAM | SDRAM 8MB |
| FLASH | FLASH 8MB (expandable) |
| Driver support system | Windows: Windows 7/10/11 (32 bit/64bit) |
| APP Support System | Android 6.0 and above, iOS 11 and above |
| Bar Code Format | Code 128、EAN128、ITF、Code39、Code93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、 EAN8+5, CodeBar、Postnet、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、MSI、MSIC、PLESSEY、CPOST、ITF14、EAN14、Code11 |
| Two-dimensional code format | QR code, PDF417, Micro PDF 417, DataMatrix, AZTEC |
| Character enlargement/rotation | 1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing |
| Character | GB18030, BIG5, ASCII |
| Extended Character | PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, Iranll, Latvian, Arabic, PT151, PC747, WPC1257 and other languages, 61 kinds in total |
| Character size | 9x17dot, 12x24dot, 24x24dot |
| Paper Type | Gap Label, Continuous Label, Black Mark Label, Folded Label |
| Roll width (including backing paper) | 30~114mm |
| Roll thickness (including backing paper) | 0.12~0.26mm |
| Paper axis size | 25.4mm |
| Roll outside diameter | 120mm (OD) |
| FEED | Front exit |
| Power | Input power supply: AC100~240V, Output power: DC 24V~2.5A |
| Working environment | Operating temperature: 5~40°C |
| Storage environment | Storage temperature: -10~60°C |
| Print head life | 150km(Print rate 18.5%) |
| Dimension | 210*168.5*152.5 mm |
| Weight | 1.2KG |
| Accessories(standard) | 1. Power adapter 2. Power cord 3. USB cable 4. Quick installation Guide 5. paper reel, paper roll baffle *2 6.Printing consumables *1 |
| Certification | CCC, CE, ROHS, REACH, TELEC (Japan), EAC (Russia), FAC (Russia), SRRC, BIS (India) |
