TD-403T 4-inch Desktop Thermal And Thermal Transfer Label Printer – USB+Serial+Ethernet+Bluetooth+WiFi
₹11,999.00
Out of stock
Additional information
| Model | Desktop Thermal Transfer Barcode Printer TD-403T |
|---|---|
| Print Head DPI | 203DPI |
| Printing Method | Thermal / Transfer |
| Interface | USB + Serial + Ethernet + Bluetooth + WiFi |
| Emulation | TSPL, ZPL, CPCL, DPL, EPL |
| Sensor | Gap sensor/open cover sensor/Black label sensor/Carbon detection sensor |
| Print Speed | 152mm/s (max) |
| Printing Width | 108mm (max) |
| Printing Length | 1778mm (max) |
| SDRAM | SDRAM 8MB |
| FLASH | FLASH 8MB (expandable) |
| Bar Code Format | Code128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CodeBar, Postnet, UPC- A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, MSI, MSIC, PLESSEY, CPOST, ITF14, EAN14, Code11 |
| Two-dimensional code format | QR code, PDF417, Micro PDF 417, Data Matrix, AZTEC |
| Character enlargement/rotation | 1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing |
| Character | GB18030, BIG5, ASCII |
| Extended character | PC437, Katakana, PC850, PC860, PC863, PC865, West Europe Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852 PC858, Iranll, Latvian, Arabic, PT151, PC747, WPC1257 |
| Character size | 9x17dot, 12x24dot, 24x24dot |
| Paper type | Continuous Label, Continuous Label, Black Mark Label, Folded paper, Coated Label |
| Roll width (including backing paper) | 20-118mm |
| Roll thickness (including backing) | 0.06~0.254mm |
| Paper reel core | 25.4mm |
| Roll outside diameter | 127mm (OD) |
| Ribbon width | 30-110mm |
| Ribbon length | 300m |
| Ribbon axis size | 25.4mm |
| Ribbon outer diameter | 67mm (OD) |
| Ribbon winding form | Roll-out |
| FEED | Front exit |
| Tearing mode | Paper knife (standard) |
| Power | Input power supply: AC100-240V |
| Working environment | Operating temperature: 0~45°C |
| Storage environment | Storage temperature: -10~60°C |
| Print head life | 150km (Print rate 18.5%) |
| Dimension | 274 x 213 x 191 mm |
| Weight | 2.54KG |
| Accessories (standard) | 1. Power adapter 2. Power cord 3. USB cable 4. Quick installation Guide 5. Ribbon strip axis *2 6. carbon tape roll *1 7. consumable roll *1 |
| Accessories (optional) | External roll holder |
| Certification | CCC, CE, ROHS, REACH, TELEC (Japan), EAC (Russia), FAC (Russia), SRRC, BIS (India) |
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
TD-403T 4-inch Desktop Thermal And Thermal Transfer Label Printer – USB+Serial+Ethernet+Bluetooth+WiFi
₹11,999.00
Out of stock

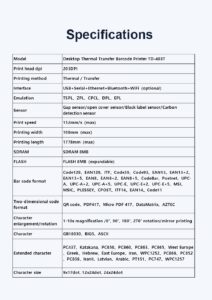

Technical Specifications
Product Catalogue
Product Specifications
| Model | Desktop Thermal Transfer Barcode Printer TD-403T |
|---|---|
| Print Head DPI | 203DPI |
| Printing Method | Thermal / Transfer |
| Interface | USB + Serial + Ethernet + Bluetooth + WiFi |
| Emulation | TSPL, ZPL, CPCL, DPL, EPL |
| Sensor | Gap sensor/open cover sensor/Black label sensor/Carbon detection sensor |
| Print Speed | 152mm/s (max) |
| Printing Width | 108mm (max) |
| Printing Length | 1778mm (max) |
| SDRAM | SDRAM 8MB |
| FLASH | FLASH 8MB (expandable) |
| Bar Code Format | Code128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CodeBar, Postnet, UPC- A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, MSI, MSIC, PLESSEY, CPOST, ITF14, EAN14, Code11 |
| Two-dimensional code format | QR code, PDF417, Micro PDF 417, Data Matrix, AZTEC |
| Character enlargement/rotation | 1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing |
| Character | GB18030, BIG5, ASCII |
| Extended character | PC437, Katakana, PC850, PC860, PC863, PC865, West Europe Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852 PC858, Iranll, Latvian, Arabic, PT151, PC747, WPC1257 |
| Character size | 9x17dot, 12x24dot, 24x24dot |
| Paper type | Continuous Label, Continuous Label, Black Mark Label, Folded paper, Coated Label |
| Roll width (including backing paper) | 20-118mm |
| Roll thickness (including backing) | 0.06~0.254mm |
| Paper reel core | 25.4mm |
| Roll outside diameter | 127mm (OD) |
| Ribbon width | 30-110mm |
| Ribbon length | 300m |
| Ribbon axis size | 25.4mm |
| Ribbon outer diameter | 67mm (OD) |
| Ribbon winding form | Roll-out |
| FEED | Front exit |
| Tearing mode | Paper knife (standard) |
| Power | Input power supply: AC100-240V |
| Working environment | Operating temperature: 0~45°C |
| Storage environment | Storage temperature: -10~60°C |
| Print head life | 150km (Print rate 18.5%) |
| Dimension | 274 x 213 x 191 mm |
| Weight | 2.54KG |
| Accessories (standard) | 1. Power adapter 2. Power cord 3. USB cable 4. Quick installation Guide 5. Ribbon strip axis *2 6. carbon tape roll *1 7. consumable roll *1 |
| Accessories (optional) | External roll holder |
| Certification | CCC, CE, ROHS, REACH, TELEC (Japan), EAC (Russia), FAC (Russia), SRRC, BIS (India) |
Product Information
