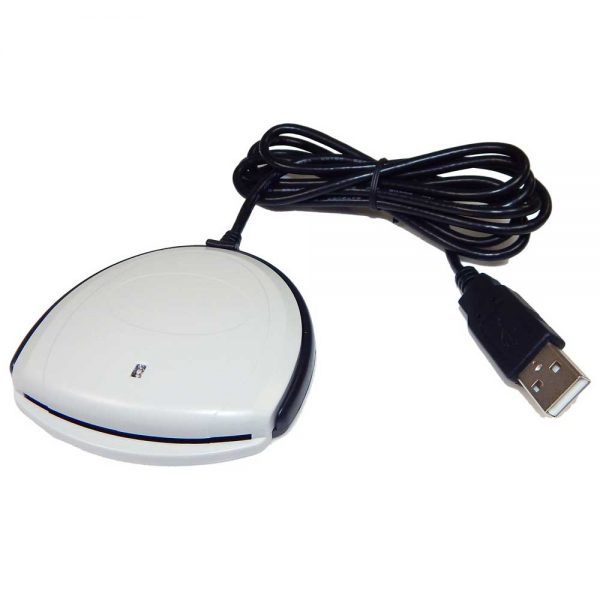

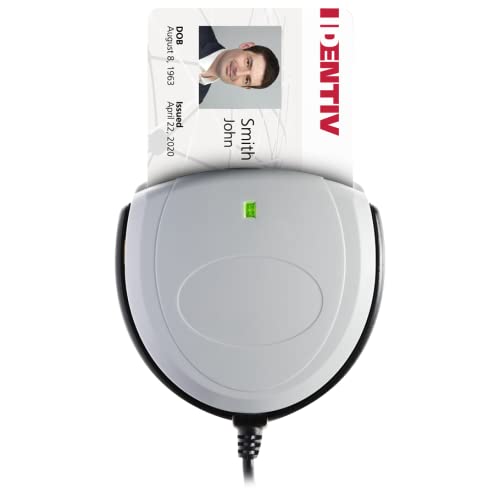

SCR3310v2.0 USB Smart Card Reader
₹1,500.00
Additional information
| Host Interface | USB 2.0 full speed (12 Mbps) |
|---|---|
| Supported Standards | ISONEC 7816 Part 1 to 4 |
| Supported Tag ICs | All major ISO/IEC 7816 compliant smart cards and synchronous cards |
| Smart Card Protocols | T=0, T=1, synchronous cards I2C and 3-wire |
| Smart Card Interface Speed | Up to 600 kbps |
| Smart Card Clock Frequency | ISO/EC 7816 compliant, Operates up to 16 MHz |
| Supported Smart Card Types | 5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C |
| Power to Smart Card | 60mA in Class A; 55mA in Class B; 35mA in Class C |
| Smart Card Detection | Card present switch |
| Card Size | ID-1 |
| Contact Type | 8 pin ID-1 Sliding Contact Socket |
| PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: |
| Software | • PC/SC API |
| Power Supply | Bus-powered USB |
| Power Consumption | <6mA excluding smart card; <20mA with standard card; <500μA in standby mode |
| Dimensions | 72 x 70 x 14 mm |
| Weight | 60g |
| Operating Temperature Range | 0° to 50° C |
| Storage Temperature Range | -20° to 60°C |
| Operating Humidity Range | Up to 95% RH non-condensing |
| Durability | Sliding contact 100,000 card insertions |
| MTBF | 100,000 hours |
| Cable | 1.5m cable with USB Type A or Type C connector |
| Status Indicator | Green LED |
| Firmware | SmartOSTM |
| Firmware In-Field Upgradeable | No |
| Systems/Standards | EMV 2011 Ver 4.3 Level 1 (compliant only), ISOMEC 7816, USB 2.0 Full Speed, CCID, Microsoft® HCK |
| Regulatory/Environmental | CE, FCC, UL 60950, GSA APL, ROHS2, REACH, WEEE |
| Product Part Numbers | • 905331 |
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
SCR3310v2.0 USB Smart Card Reader
₹1,500.00
Technical Specifications
Product Catalogue
Product Specifications
| Host Interface | USB 2.0 full speed (12 Mbps) |
|---|---|
| Supported Standards | ISONEC 7816 Part 1 to 4 |
| Supported Tag ICs | All major ISO/IEC 7816 compliant smart cards and synchronous cards |
| Smart Card Protocols | T=0, T=1, synchronous cards I2C and 3-wire |
| Smart Card Interface Speed | Up to 600 kbps |
| Smart Card Clock Frequency | ISO/EC 7816 compliant, Operates up to 16 MHz |
| Supported Smart Card Types | 5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C |
| Power to Smart Card | 60mA in Class A; 55mA in Class B; 35mA in Class C |
| Smart Card Detection | Card present switch |
| Card Size | ID-1 |
| Contact Type | 8 pin ID-1 Sliding Contact Socket |
| PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: |
| Software | • PC/SC API |
| Power Supply | Bus-powered USB |
| Power Consumption | <6mA excluding smart card; <20mA with standard card; <500μA in standby mode |
| Dimensions | 72 x 70 x 14 mm |
| Weight | 60g |
| Operating Temperature Range | 0° to 50° C |
| Storage Temperature Range | -20° to 60°C |
| Operating Humidity Range | Up to 95% RH non-condensing |
| Durability | Sliding contact 100,000 card insertions |
| MTBF | 100,000 hours |
| Cable | 1.5m cable with USB Type A or Type C connector |
| Status Indicator | Green LED |
| Firmware | SmartOSTM |
| Firmware In-Field Upgradeable | No |
| Systems/Standards | EMV 2011 Ver 4.3 Level 1 (compliant only), ISOMEC 7816, USB 2.0 Full Speed, CCID, Microsoft® HCK |
| Regulatory/Environmental | CE, FCC, UL 60950, GSA APL, ROHS2, REACH, WEEE |
| Product Part Numbers | • 905331 |
